SDLC description and schemes

21. 07. 2025

Overview

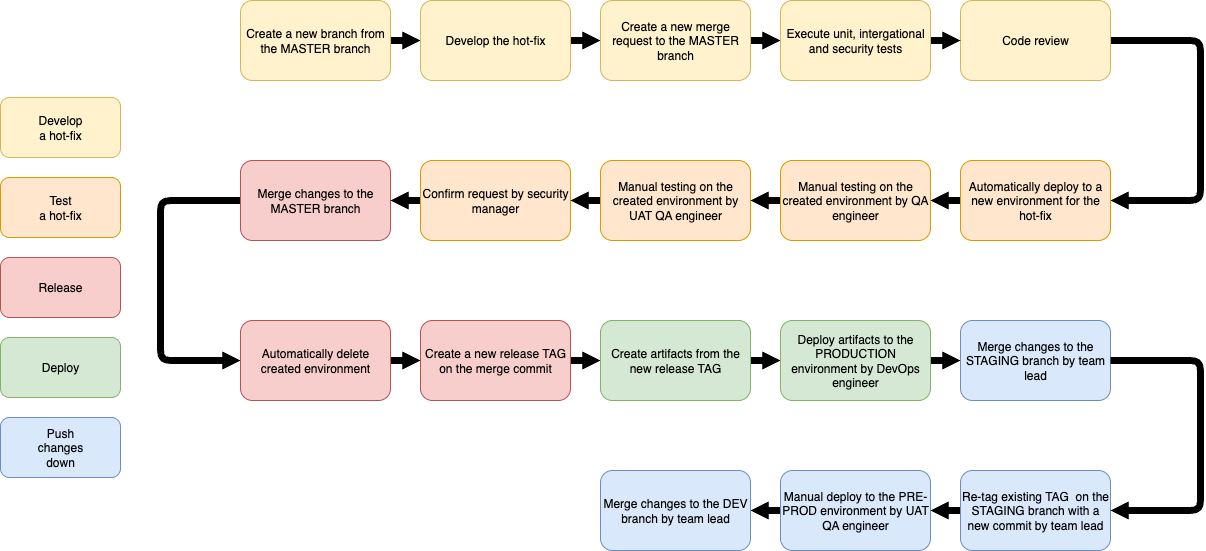

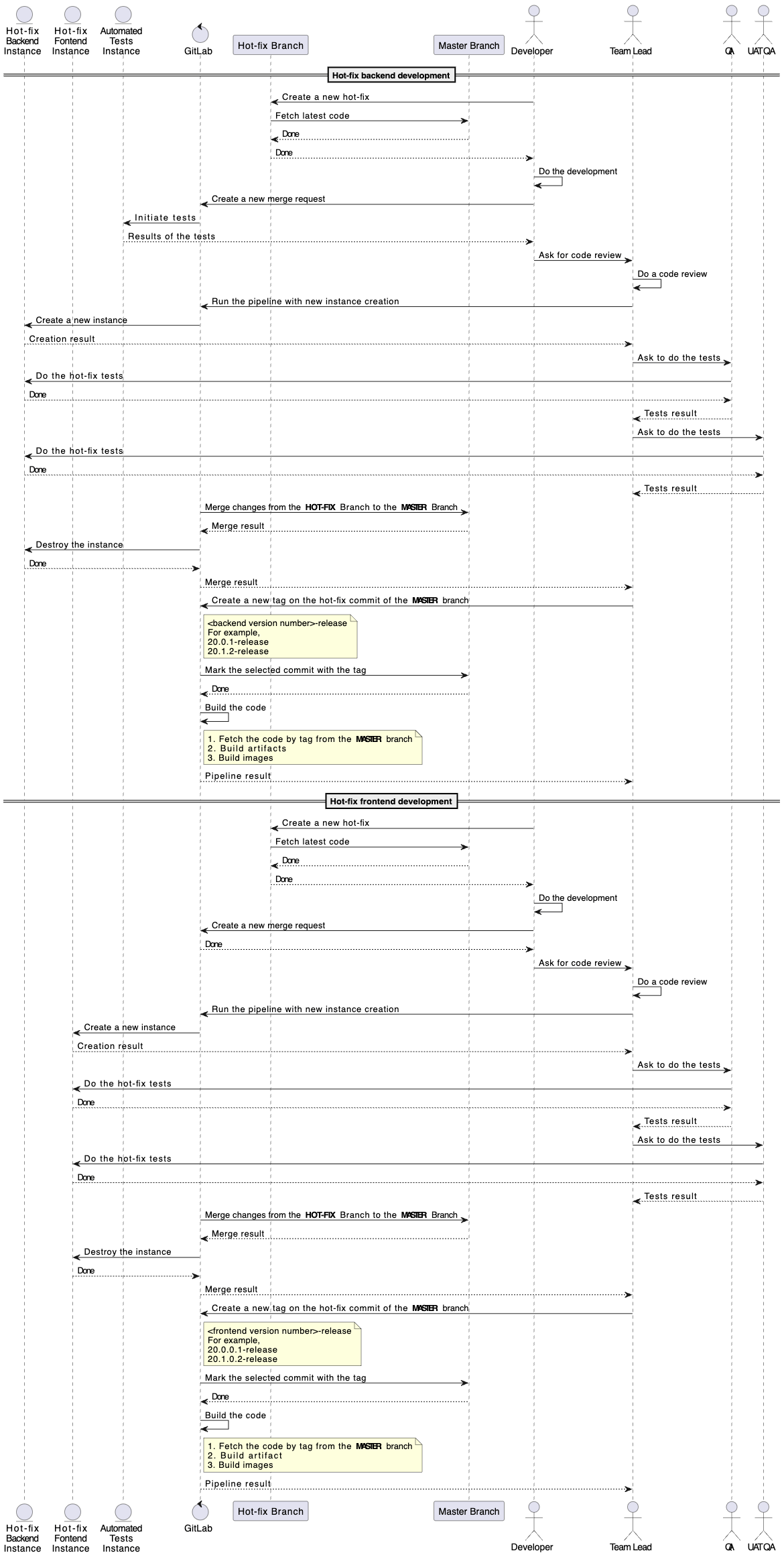

This document provides an example of a Software Development Life Cycle (SDLC) that can be used as a reference model for structuring the implementation and release process of features and hotfixes.

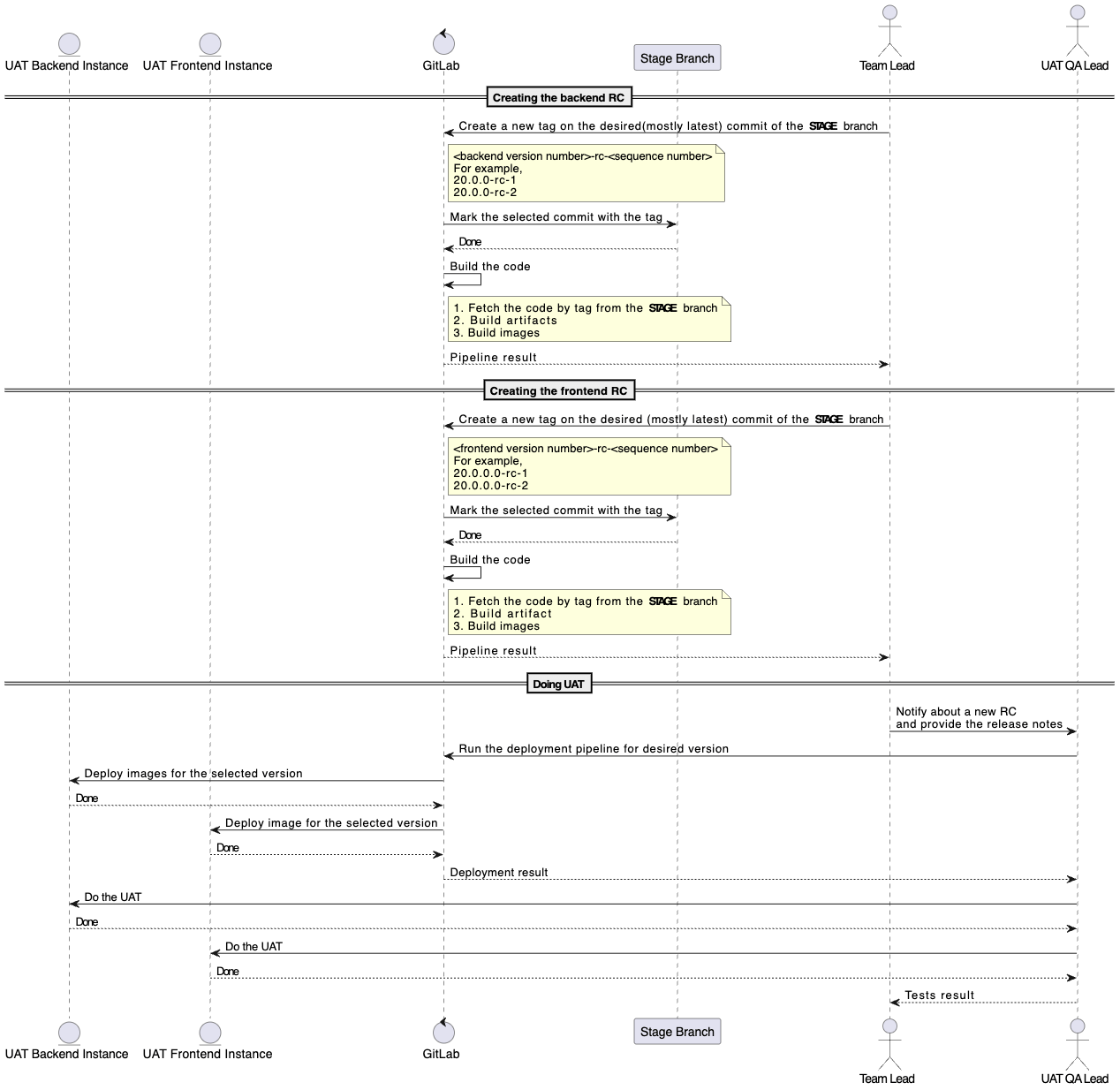

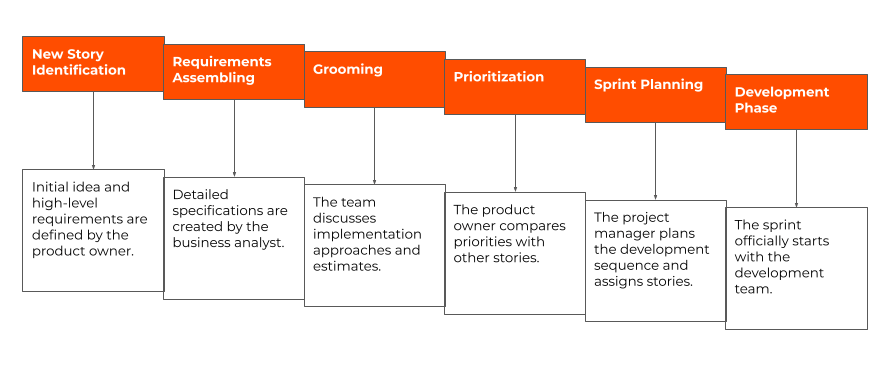

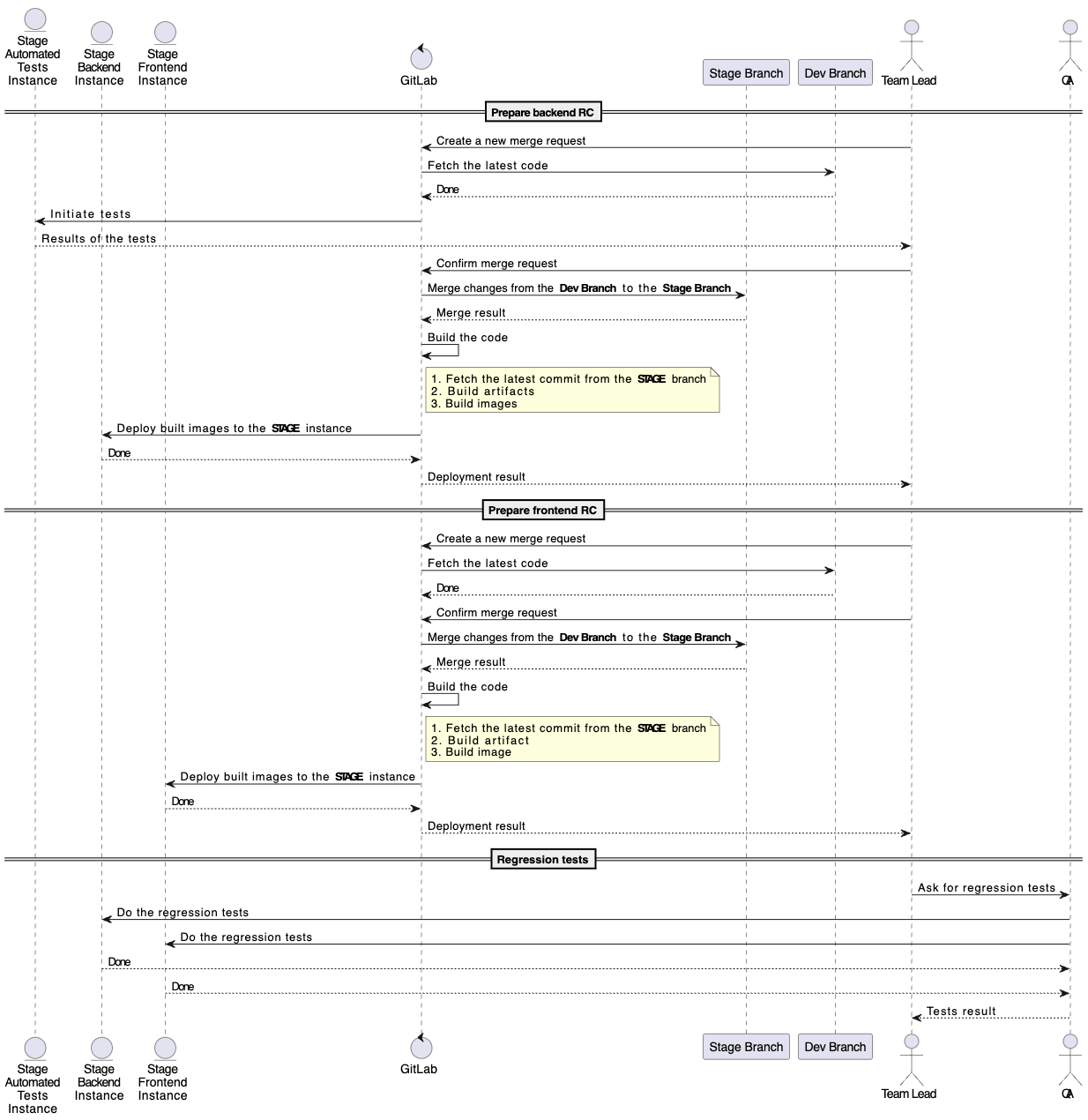

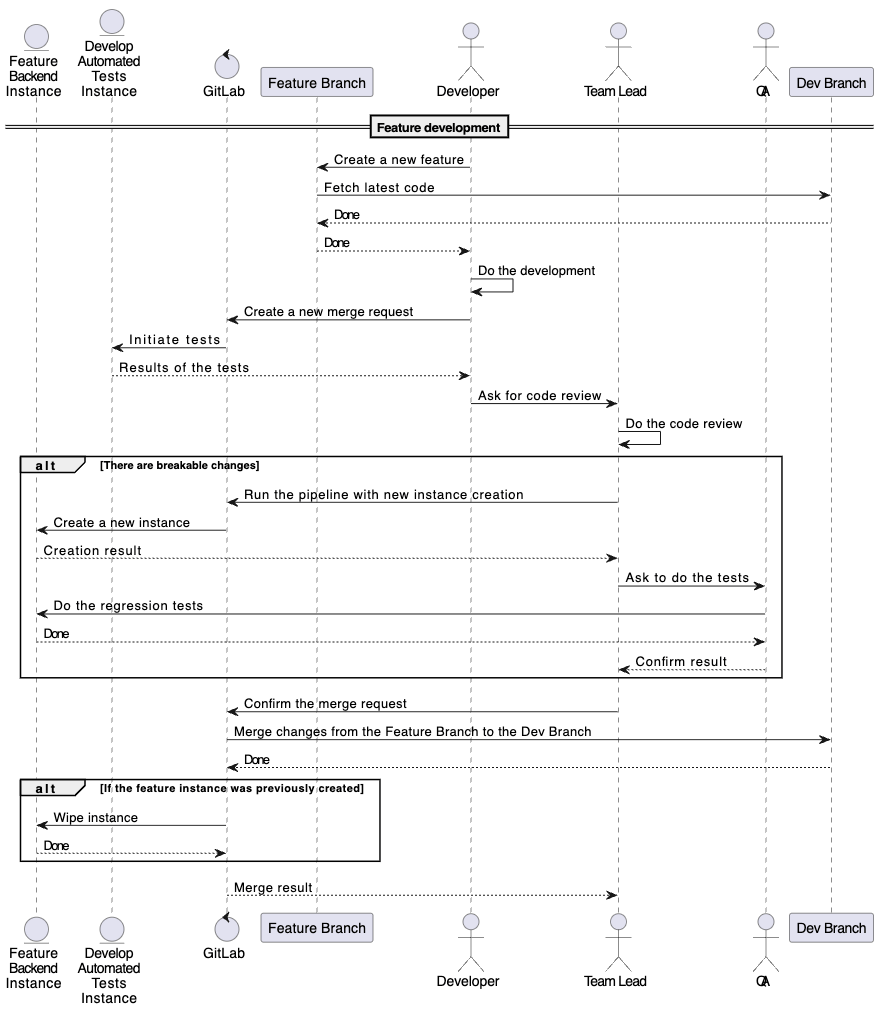

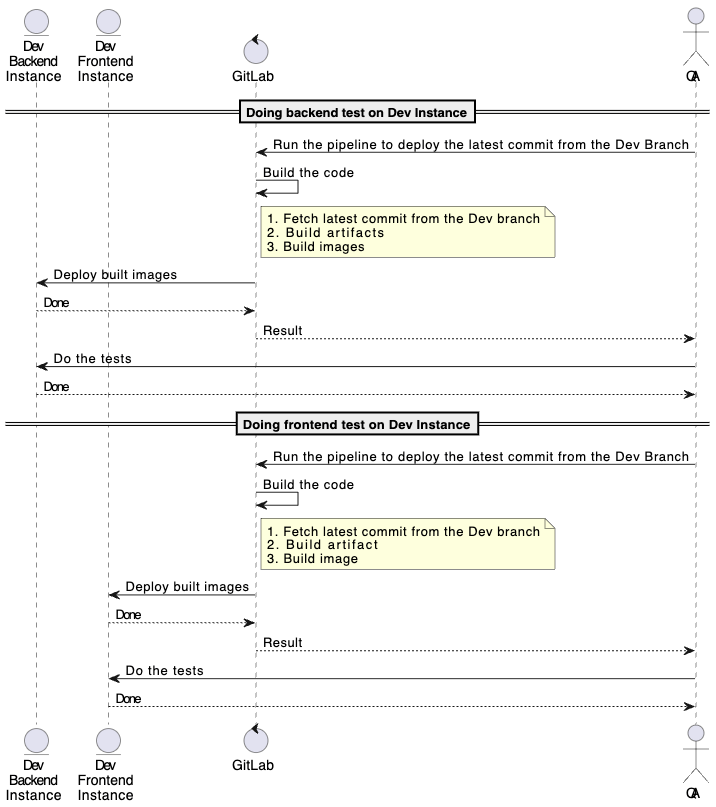

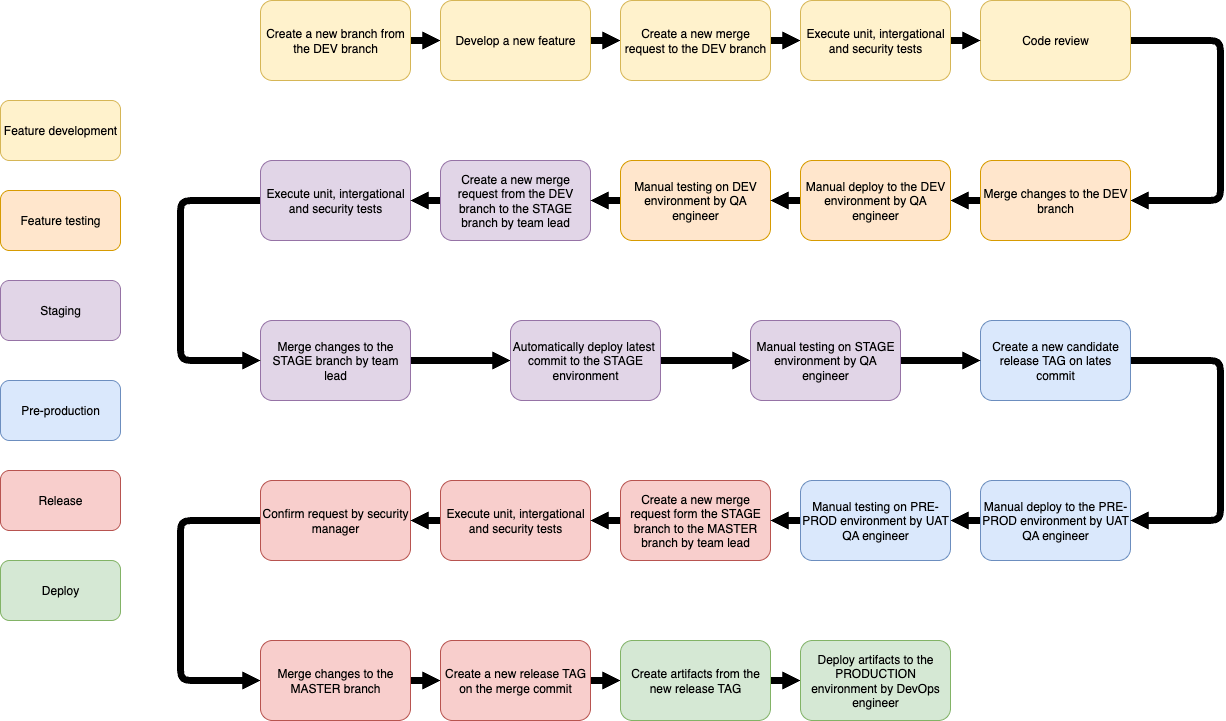

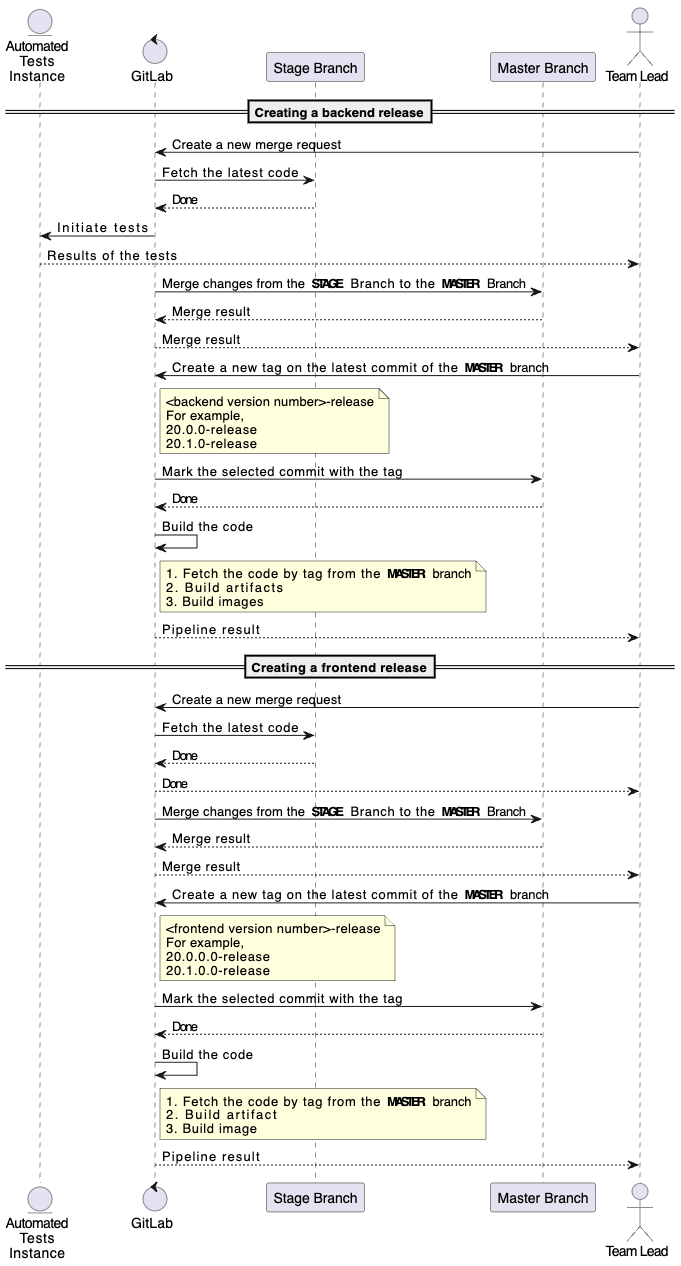

The diagrams included in this document illustrate the typical flow of activities in a development lifecycle where pre-production environments are used, automated tests may be run on dedicated test instances, and UAT (User Acceptance Testing) is performed before final release.

Please note that this SDLC is not a strict guideline or a one-size-fits-all approach. It is meant to serve as an example and can (and should) be adapted to meet the specific needs, processes, and technical infrastructure of each team or organisation.
